| Brand Name : | Lingxun |
| Model Number : | CS7N65A2 |
| Certification : | IATF16949,ISO9001,ISO14001,ROHS,REACH |
| Price : | According to your order requirement |
| Delivery Time : | According to your order requirement |
| Payment Terms : | T/T |
| Supply Ability : | 600KK/Year |

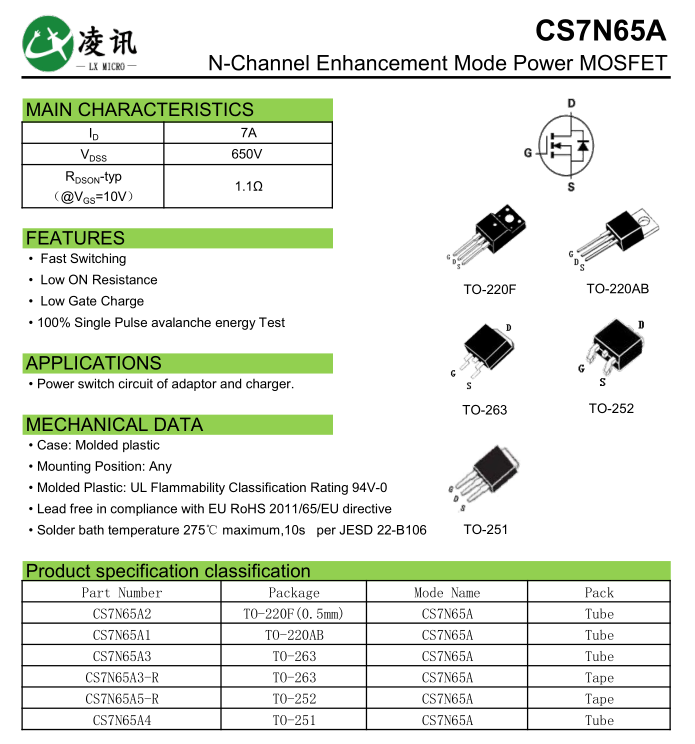

7A650V CS7N65A2 High Voltage Mosfet For Power Supply Units Fast Switching
| Part Number | Package | Channel | ID (A) | VDSS (V) | VGSS (V) | VGS(th)(V) | RDS(ON) 10V(mΩ) | Qg (nC) | Ciss (pF) | PD (W) | ||
| Min. | Min. | Min. | Max. | Typ | MAX | Typ | Typ | |||||
| CS7N65A2 | TO-220F | N | 7 | 650 | ±30 | 2 | 4 | 1060 | 1400 | 23 | 1264 | 35 |
One of the key features of the CS High Voltage MOSFET is its low ON resistance, which translates to low loss and high efficiency. This makes it an ideal component for power electronics applications that require low power dissipation and high performance. Additionally, this MOSFET is 100% avalanche tested, which means it can handle high current and voltage spikes without failure.
Another advantage of this MOSFET is its low Ciss, which refers to the input capacitance. This results in less noise, less distortion, and better overall performance. Furthermore, it has fast switching capabilities that make it suitable for use in high-frequency applications such as LED drivers.
Overall, the CS High Voltage MOSFET is a reliable and efficient semiconductor device that is suitable for a wide range of power electronics applications. Its low ON resistance, 100% avalanche tested, low Ciss, and fast switching capabilities make it an ideal choice for power switch circuits in adaptors and chargers, switch mode power supplies, uninterruptible power supplies, and power factor correction units.
| Attribute | Value |
|---|---|
| Application | Power Switch Circuit Of Adaptor And Charger, Switch Mode Power Supply, Uninterruptible Power Supply, Power Factor Correction |
| Model Number | CS7N65A2 |
| Type | N |
| Voltage | High Voltage |
| High Light | Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching |
| Gate-Source Voltage (Vgs) | ±30V |
This High Voltage MOSFET product is ideal for use in power switch circuits of adaptors, chargers, switch mode power supplies, uninterruptible power supplies and power factor correction. It has a model number of CS7N65A2, type N, and features low on-resistance, fast switching and is 100% avalanche tested. It has a gate-source voltage of ±30V and is suitable for use in charging pile and new energy applications.
Brand Name: Lingxun
Model Number: CS7N65A2
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
High Light: Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching
Voltage: High Voltage
Gate-Source Voltage (Vgs): ±30V
Type: N
Keywords: Welding Machine, High Switching Speed, Motor Control
Our High Voltage MOSFET product has a dedicated technical support team that is available to provide guidance and assistance with any technical issues that may arise. Our services include:
We take pride in delivering exceptional technical support and services to our customers, and we are committed to ensuring the success of your project or application. Contact us to learn more about our High Voltage MOSFET technical support and services.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
